Acoustic Panels for Home Cinema: What to Buy and Where to Put Them

Acoustic treatment is not soundproofing

These are two different jobs. Absorption reduces reflections and reverberation inside a room, which makes it calmer and clearer. Sound insulation limits noise passing between rooms through walls, floors and ceilings.⁶

A panel hung on a wall is an absorber. It isn't isolation construction, and it isn't a reliable way to keep a subwoofer from reaching neighbours. Treating a room can change how it sounds inside, but don't count on it to cut what leaks out. If neighbours are the problem, start with Big sound, thin walls, which covers placement, settings and talking to the people next door.

When a room may benefit

Signs that reflections are part of the problem include audible flutter echo (a fast, metallic flutter after a clap between parallel hard walls), speech that sounds hollow or harsh in a bare room, and sound that seems to come from the walls instead of the screen.

A clap test is a fair first check for ringing you can hear. It can't diagnose bass, and it can't write a treatment plan.

Be careful about blaming the room for everything. Hard-to-follow dialogue can also come from speaker position or levels, how a programme was mixed, your hearing or a receiver setting. If bass changes from seat to seat, that is mostly room modes and speaker, subwoofer and seat placement, and thin wall panels won't fix it. For small rooms, Genelec says absorption is usually the primary need and diffusion is less beneficial.¹

The main types, compared

Product names are a poor guide. "Acoustic" in a name doesn't establish useful broadband absorption, and the same material can perform very differently at different thicknesses and mountings. Use the table to know what to ask for.

Swipe the table sideways to see every column.

Thickness, air gaps and materials

Porous absorbers work on moving air, so depth matters. Genelec says a thick layer of material is needed to absorb low frequencies, and that thin layers of porous absorbers only reduce high-frequency reflections.¹

Fifty millimetres (2 in) and 100 millimetres (4 in) are common depths, so treat them as examples, not specifications. One manufacturer calls 2 in the minimum for speech clarity and suggests 4 in or more at reflection points, but gives no test data.⁴ Don't assume either thickness works well down to a particular frequency without data for the exact product.

Spacing a panel off the wall can raise absorption at lower frequencies, because the material sits where air movement is greater. Test reports show it as a separate mounting condition. An air gap is not the same as adding that much material, and the benefit depends on the product.^{4, 7}

Density isn't a shortcut either. Heavier material isn't automatically better, and one manufacturer notes that overly dense material can reduce efficiency in thicker devices.⁴ Area, material properties, depth, mounting and the frequencies you want to treat all work together.

Reading absorption specifications

A laboratory report lists an absorption coefficient for each frequency band, from 0 (no absorption) to about 1 (everything absorbed). Look at the curve, not only the headline number.

NRC (noise reduction coefficient) is a single number: the average of the coefficients at 250, 500, 1,000 and 2,000 Hz, rounded to the nearest 0.05. Its companion, SAA, averages twelve bands from 200 to 2,500 Hz.⁷ Neither covers the bass. A single high NRC doesn't show that a panel does anything at subwoofer frequencies, and NRC isn't a soundproofing rating at all.

Mounting matters. ASTM C423 measures decay in a reverberation room with and without the sample, and the result is for the sample as it was installed. ISO 354 is the international equivalent, with a larger specimen.⁷ A panel tested on a wall and the same panel tested with a gap behind it are two different results. So use a laboratory result only for the exact product, thickness and mounting it describes. Don't carry it over to another panel made from the same material.

Some laboratory coefficients come out above 1. This doesn't mean a panel absorbs more than all the energy that reaches it. Edge and diffraction effects during the measurement make the sample behave as if it were larger than its physical area, and published work describes values above 1 as common in reverberation-room tests.⁹

Where panels go

Side walls. The mirror method is a geometric aid for one speaker and one seat. Imagine each speaker reflected in the side wall and draw a line from that image to your ears. Where it crosses the wall is a first-reflection point. At mid and high frequencies, reflections leave a surface at the angle they arrive, so it's a reasonable place to start.² It says nothing about the rest of the room and doesn't prove every reflection should be absorbed. Genelec's guidance is to guide first reflections away from the listening area.¹

Ceiling. The same method works for the ceiling, using the height of the speaker and of your ears. Whether to treat that point depends on your speakers. If you use Dolby Atmos-enabled (upward-firing) speakers, Dolby's installation guidance wants a flat, reflective ceiling over them, and absorbing the reflection they rely on defeats them.⁸ Dolby also says acoustic ceiling tiles tend to absorb the overhead sound and should be replaced where the reflection occurs. Direct-radiating in-ceiling speakers play downward and don't depend on a bounce, so the ceiling is a different question for them.

Front and rear walls. There's no rule that every wall gets the same treatment. Genelec advises keeping seats at least a metre from walls.² If the back wall is close to your seat, absorption there is worth considering. Don't put a diffuser immediately behind the listener without checking its operating range and the distance it needs. Front-wall treatment can help with some reflections, but it doesn't always cure interference between a speaker and the wall behind it.

Corners are where deeper bass treatment normally goes, since room modes build up there.⁵ Multiple seats make the single-seat mirror point less reliable, so treat wider areas and check each seat. Windows, doorways and furniture make a room asymmetrical, so the two sides may need different treatment.

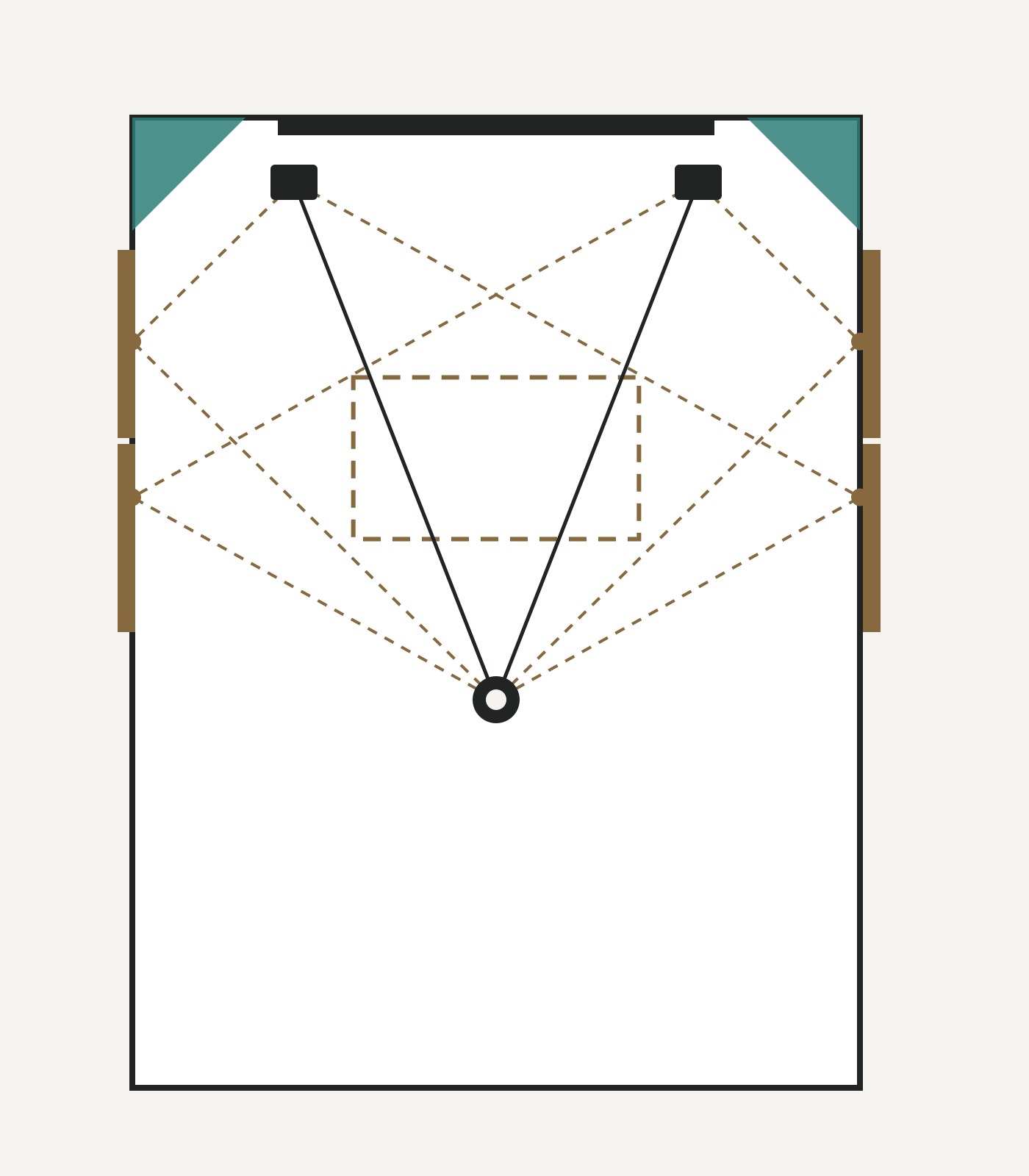

The illustration below shows the mirror method for the hypothetical room in the next section.

How many panels do you need?

There isn't a universal panel count, wall-coverage percentage or reverberation target we can responsibly give you. It depends on the room, speakers, seats and what you hear.

What we can offer is one labelled example to evaluate. Illustrative example only: a room 4.5 m wide, 6.0 m long and 2.6 m high. Left and right speakers 1.0 m from each side wall and 0.4 m from the front wall, tweeters about 1.0 m high. One seat on the centreline, 3.6 m from the front wall, with ears at 1.2 m. These are assumptions, not a prescription from the room size.

Stage 1 (first reflections): on each side wall, two panels 1.2 m wide and 0.6 m high, about 100 mm thick, centred at about 1.1 m height. They run side by side from 0.8 m to 3.2 m from the front wall. That covers the mirror points, which are about 1.4 m and 2.35 m from the front wall (a speaker's reflection in its own side wall, and in the opposite one).

Stage 2 (after measuring): deep porous traps in the front corners, as much depth as the room allows. Stage 3 (optional): a ceiling panel over the reflection points, which sit about 1.7 m and 2.8 m from the left wall and 2.1 m from the front wall. Only do this with direct-radiating speakers, not upward-firing ones.

Install one stage, measure, and reassess. Add more only if the room still has the problem you started with. The acoustic treatment planner estimates reverberation and panel area from your room's size. It's a planning aid, not a measurement.

Bass traps, placement and room correction

Thin decorative treatment is unlikely to resolve deep room-mode problems. The first levers are placement: where the speakers, the subwoofer and the seats sit. Genelec notes the flattest response usually comes from a position where room-mode resonances aren't strongly excited, and that two subwoofers may give a flatter response than one.³ Multiple subwoofers need appropriate placement and integration, and adding one doesn't guarantee an improvement. See Subwoofer integration, step by step.

Deeper or tuned treatment may help after that, with the caveats in the table. Don't describe small-room bass with one room-wide RT60 figure: bass behaves by mode and by seat. The room mode calculator shows where an idealised rectangular room has them, a prediction, not a measurement.

Room EQ can reduce some peaks, but it doesn't remove physical reflections and can't reliably repair a deep cancellation null. Four ways to correct a room explains what each system does.

Measuring before and after

A calibrated measurement is the only fair way to tell whether treatment helped. Keep the microphone position, level, settings and any processing the same every time. Save a baseline, change one meaningful thing, then repeat at the same positions, and at several seats where you can. A phone recording or an AI analysis of a room photograph isn't equivalent to a calibrated measurement.

Three views are worth knowing. Frequency response shows peaks and dips, and overlaying measurements shows what changed.^{10, 13} The impulse response shows individual reflections arriving in time, which suits checking that a panel has reduced a particular reflection.¹¹ Frequency-dependent decay (waterfall or RT60) shows how long each band keeps ringing.¹²

For the how-to, use Your first room measurement, step by step; Reading your first room measurement explains the graphs. The REW Analyzer opens your REW files in the browser, and nothing is uploaded.

A buying checklist

Test results. Coefficients by frequency, not only NRC, for this exact product.

Depth and mounting. The exact panel depth and the test mounting method, and the overall installed depth including any air gap.

Secure fixing. A mounting method suited to your wall, with the weight in mind.

Fire performance. Documentation for the complete product or assembly, including facing and fabric. Not all foam burns readily and not all mineral wool is unsafe, but classification systems differ, for example European classes under EN 13501-1 and US surface-burning tests such as ASTM E84, and one isn't automatically equivalent to another. Check your local requirements with an official local source.

Fabric and containment. A fabric and a covering suited to the material, particularly for loose fibre.

Room fit. The space it takes, and whether it suits the room.

Cost and returns. Total delivered cost and return options.

Renting? Freestanding panels avoid drilling, but need space and a stable base, so check they can't tip.

Questions people ask

Do acoustic panels soundproof a room? No. They reduce reflections inside a room and aren't a reliable isolation solution.⁶

Are wood-slat panels effective? It depends on the complete assembly, including the backing, the cavity and the fill. Ask for test data for the whole thing.

Is foam enough for a home cinema? It can reduce some higher-frequency reflections, depending on thickness and tested performance. It says little about low-frequency control unless the data shows it.

Are thicker panels always better? Thicker generally reaches lower¹, but area, material, mounting and room all matter, and a very thick panel may be wrong for a small room.

Can curtains and rugs replace panels? They mainly affect certain frequency ranges. Don't assume they replace broadband or bass treatment.

Behind the speakers or behind the sofa? Neither is automatic. Check first reflections, and see the placement section for the rear wall.

Can too much treatment make a room sound dull? It can. Thick traps can overdamp treble in some configurations.⁵ Add in stages and measure.
