Dolby Atmos vs DTS:X vs Auro-3D: Which Matters for Your Home Cinema?

DTS vs Dolby: families, codecs and formats

The common “DTS vs Dolby” question is really several. Dolby Digital, Dolby Digital Plus and Dolby TrueHD are codecs, ways of packing a soundtrack for a disc, a stream or an HDMI cable. Dolby Atmos is an immersive format that adds height and position information, and it travels inside some of those codecs. DTS works the same way: DTS-HD Master Audio is a codec, and DTS:X is an immersive format built on it. Auro-3D is a separate immersive format with its own layouts and its own delivery codec.

The practical consequence is that a TrueHD or DTS-HD Master Audio track does not automatically contain Atmos or DTS:X. Dolby describes Atmos in TrueHD as an extra substream added to the usual channel-based audio, and DTS describes DTS:X as building on DTS-HD Master Audio while staying compatible with older DTS decoders. The same codec name can sit on a plain 5.1 track and on an immersive one. The disc or app’s audio listing, and the receiver’s input display, show which you have.

Swipe the table sideways to read every column.

How the three immersive systems work

Channel-based audio assigns each sound to the channels of a fixed layout: left, centre, right, surrounds. Object-based audio stores a sound with position information, and the playback device works out how to reproduce it on the speakers it has. Dolby describes a renderer in the receiver that reads the metadata and decides in real time how to use your speakers, and says more speakers make placement more precise. An object is not tied to one speaker: a sound between two speakers is reproduced by both, as panning always has been.

Atmos in the home combines channel-based beds with objects, and Dolby notes that filmmakers often remix a film for home theatres. DTS:X follows the same logic: DTS describes it as adapting to practically any symmetrical speaker layout and, at its 2015 announcement, as built on an open object-audio platform called MDA. That flexibility describes what the decoder can do with your layout, not that placement stops mattering: the CINEMA 50 manual recommends height speakers for DTS:X.

Auro-3D is described by its makers as built on layers: a surround layer at ear level, a height layer above it and, in some layouts, a top speaker overhead. Auro’s guidelines call the format a hybrid of channel-based and object-based technology, the latter called AuroMax, which they tie to systems with more than 20 individually amplified speakers. The home layouts in its setup guidelines, Auro 9.1 to 13.1, are channel-based, and AuroMax’s features should not be assumed of them.

Each format also has versions for cinemas, soundbars, TVs and headphones, with different delivery and processing. Virtual height from a few speakers, as in DTS Virtual:X and Auro-Scene, is a different thing from a speaker layout.

Dolby Atmos vs DTS:X vs Auro-3D at a glance

Support varies by product, so the table keeps its entries qualified. It deliberately compares no maximum channel counts, because a theoretical limit says little about a living room.

Swipe the table sideways to compare all three formats.

Auro-3D vs Atmos speaker layouts: what the numbers mean

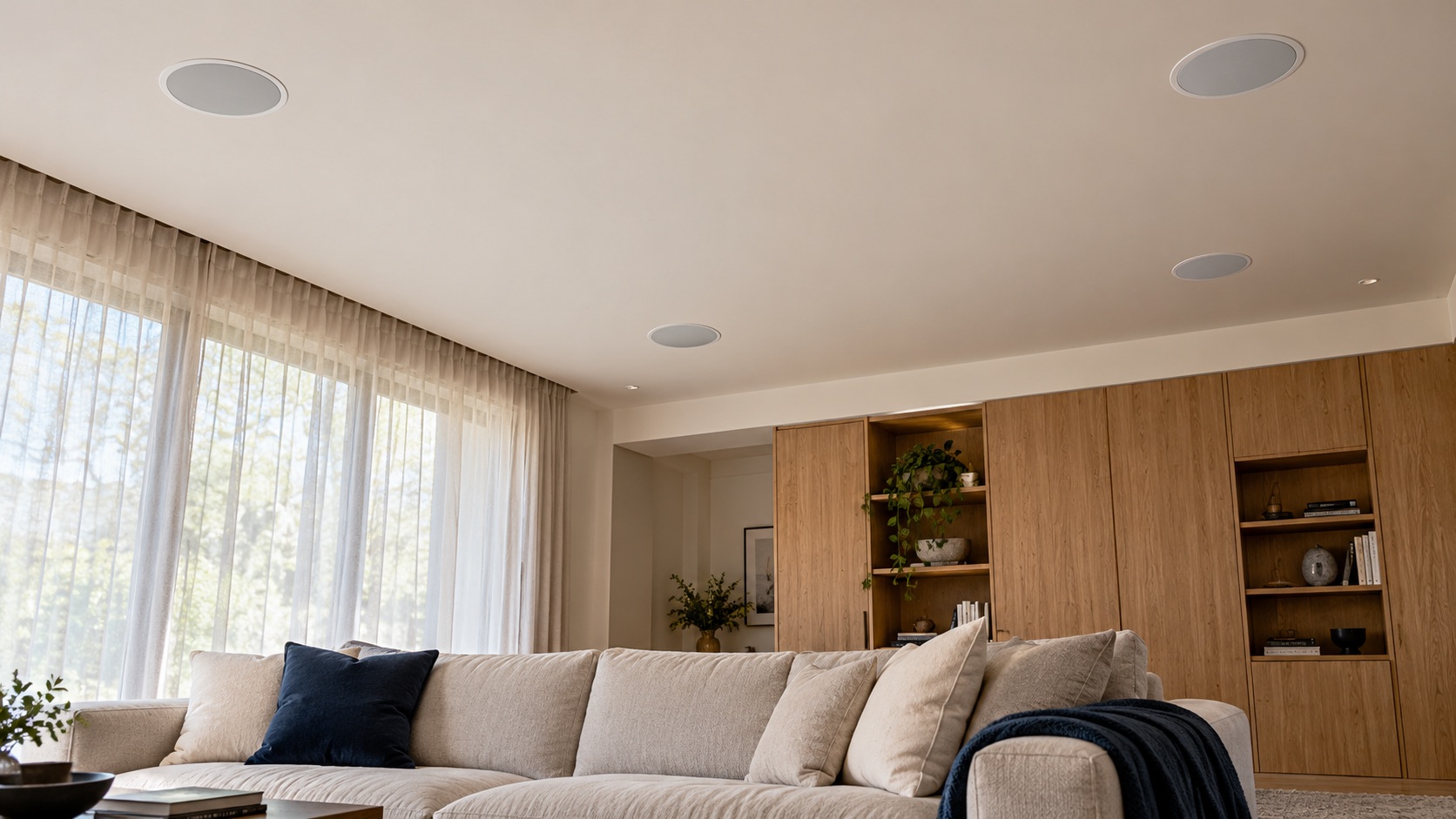

In Dolby’s notation 5.1.4 means five ear-level speakers, one subwoofer and four overhead or height speakers, and 7.1.2 means seven, one and two. Height comes from speakers in the ceiling or from upward-firing speakers that bounce sound off it. Dolby recommends four height speakers where possible, and gives a reference elevation of 45° from the seat for overheads, adjustable between 30° and 55°. Dolby’s documents give different ceiling-height ranges for upward-firing speakers (2.3 to 3.66 m in the guidelines, 2.3 to 4.3 m on its Atmos page), so follow the speaker maker’s figure.

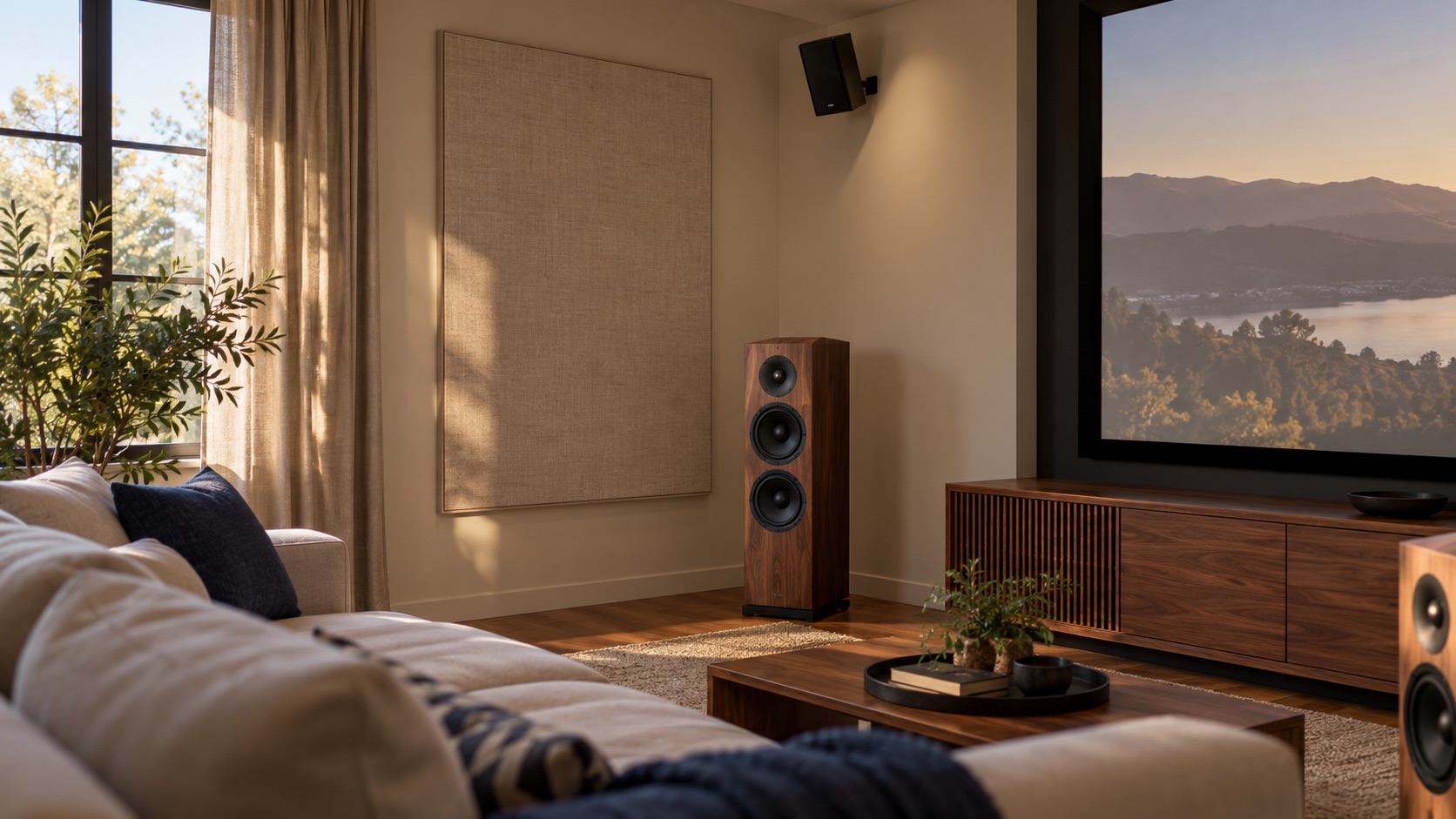

Auro-3D counts and names its speakers differently. Auro 9.1 is a 5.1 system plus four height speakers, written 5.1+4H. Auro 10.1 adds a top speaker, 11.1 comes in two forms (5.1 plus five heights and a top, or 7.1 plus four heights), and 13.1 is 7.1 plus five heights and a top. An Auro 9.1 system and a 5.1.4 Atmos system both have nine speakers and a subwoofer, but Auro places its height speakers above the front and surround speakers at about 30°, where Dolby’s reference puts overheads at 45°.

The top speaker is optional. Auro itself says it is not a crucial element and is mostly used for fly-overs and special effects, and its 9.1 layout has none.

Can one installation serve all three?

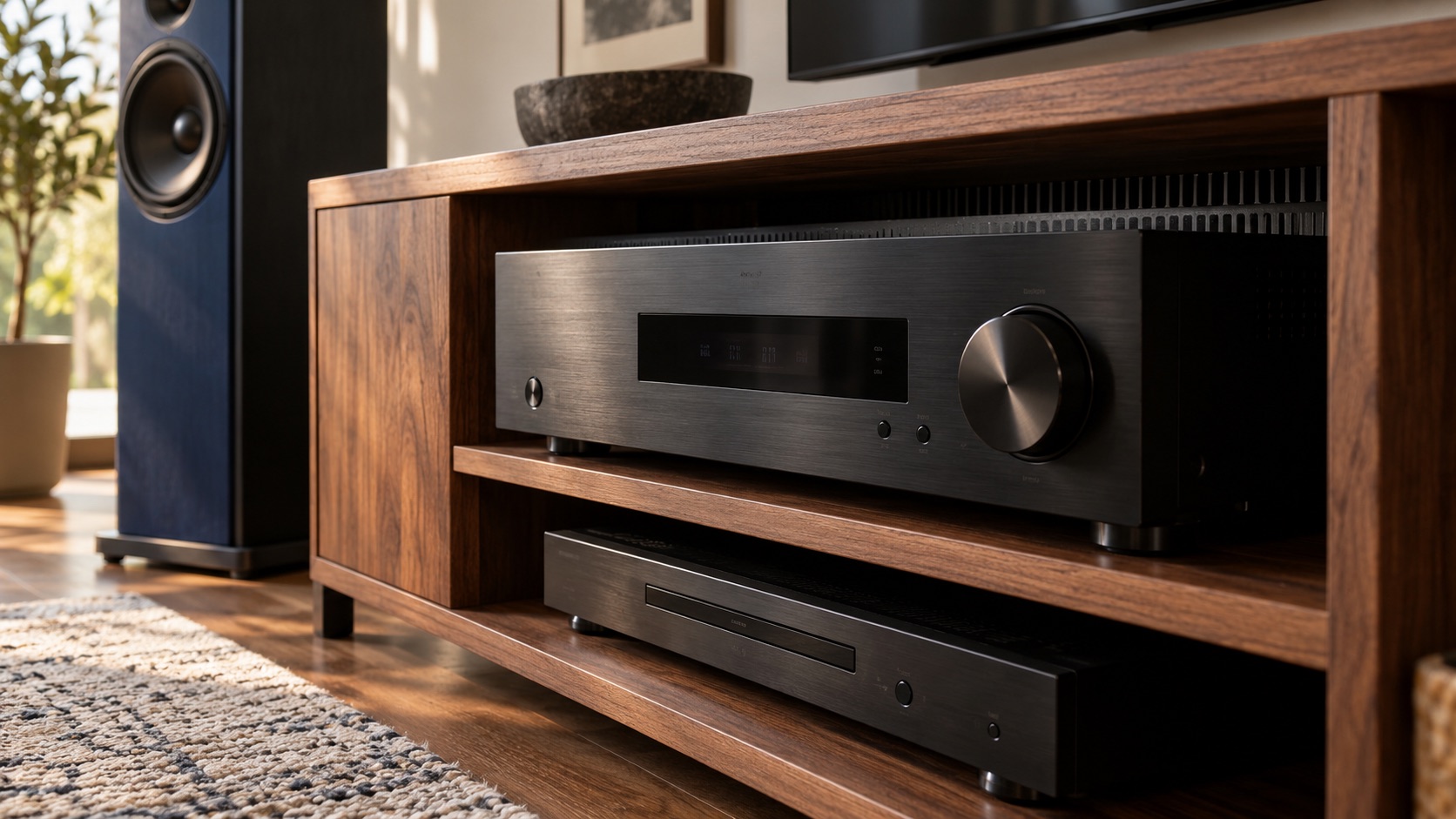

Often partly, and never automatically. What reaches each speaker is decided in the receiver, which labels height speakers by position (front height, surround height, rear height, top front, top middle) and uses the ones the current format and your settings call for. On the Marantz CINEMA 50, Auro-3D’s recommended height speakers are the front and surround pairs, and the manual allows rear height, ceiling or Atmos-enabled speakers instead. Its speaker-layout notes also name different height pairs for different formats: front and rear height for Atmos, front and surround height for Auro-3D.

That is one receiver, so other models differ, but a shared layout may be possible without being ideal for every format, because the formats ask for height speakers in different places. A layout built to Dolby’s published positions is a reasonable starting point for DTS:X too, since DTS publishes no separate angles in the sources used here. No Atmos layout should be assumed fully compatible with Auro-3D, and no Auro-3D system needs a top speaker.

Our Can my room fit 7.1.4? check turns a room’s dimensions into Dolby-style speaker positions, the 3D design studio checks the angles in a model of the room, and How many channels does your receiver need? covers receiver channels.

Native immersive sound or an upmixer?

A native track was mixed in the format. An upmixer takes a stereo or surround track and derives output for extra speakers in the receiver; it does not recover an immersive mix that was never made. Dolby advises choosing the Atmos version of a title when one exists.

Dolby Atmos and the Dolby Surround upmixer. Dolby’s upmixer expands channel-based content across the whole system, including height speakers, and replaced the Pro Logic II family. Receivers offer it as a listening mode, separate from decoding Atmos.

DTS:X and Neural:X. Neural:X is the upmixer included with DTS:X, and DTS says it adds support for up to 32 speakers (30.2). The CINEMA 50 manual describes it as expanding non-object-based audio for your speaker configuration.

Auro-3D and Auro-Matic. Auro-Matic converts mono, stereo and surround content into an Auro-3D layout, and Auro says it keeps the original channels intact instead of steering parts of them to particular speakers. Auro’s 2022 white paper says a recent version can also upmix other immersive signals; a receiver may or may not offer that, depending on model and firmware.

DTS:X and Virtual:X. Virtual:X creates virtual height and surround from as few as two speakers; it is not DTS:X decoding. On the CINEMA 50 it cannot be selected when the input is Dolby Digital, Dolby Digital Plus, TrueHD or Atmos, and only when height, ceiling and Atmos-enabled speakers are not in use. That is one manual’s rule: your own model’s manual decides.

DTS:X Pro. DTS describes DTS:X Pro as a decoder technology package for large home cinemas, supporting up to 30 connected speakers and two subwoofers, 32 output channels in all, with the Neural:X remapping engine and an object renderer. It describes a decoder, not a different soundtrack, so DTS:X content does not need to be “Pro” content.

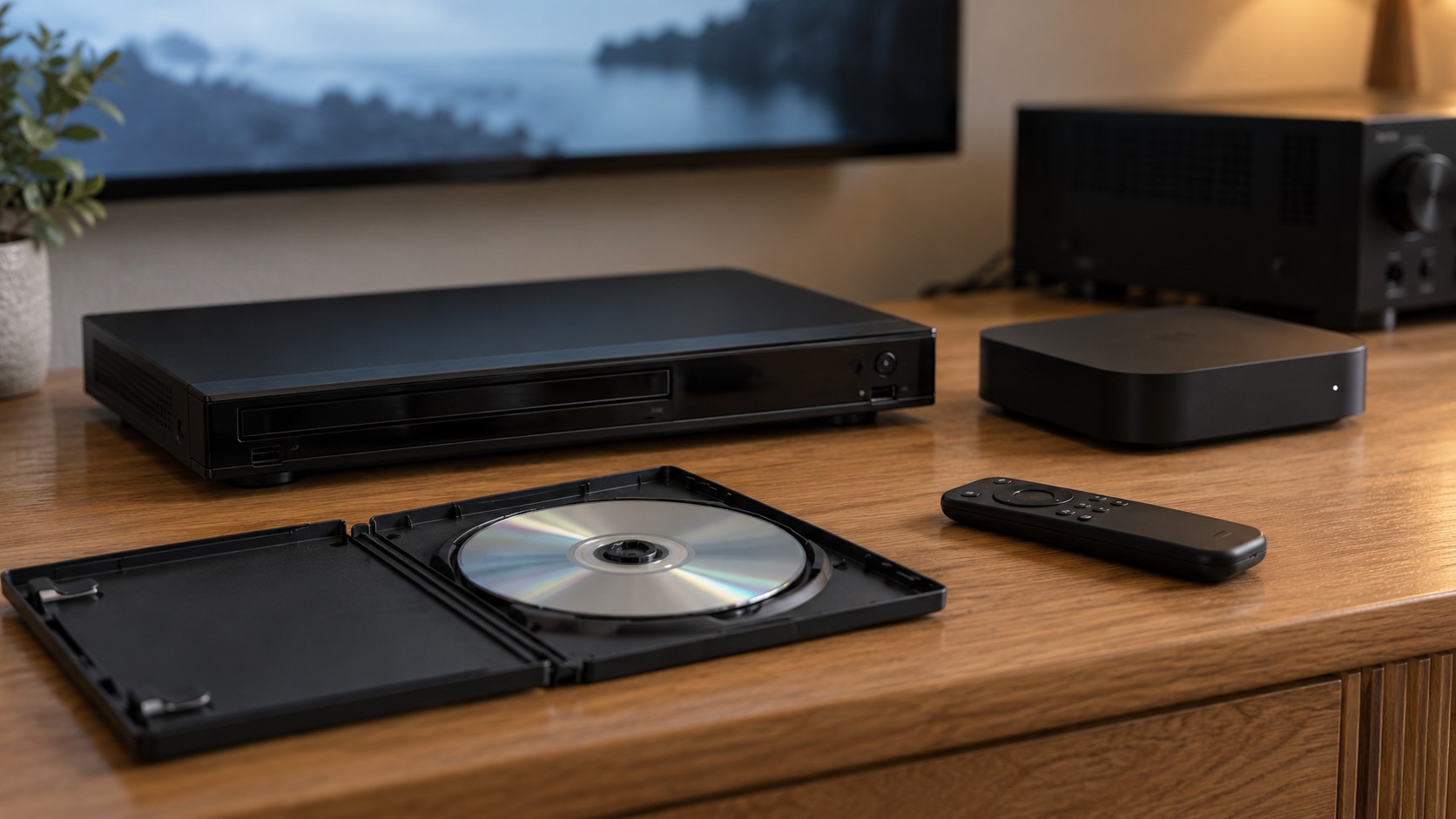

Streaming vs Blu-ray: the format is not the delivery

Atmos on Blu-ray is carried in Dolby TrueHD, which Dolby describes as lossless. Streaming and broadcast use Dolby Digital Plus. Over HDMI a source can also send Atmos as Dolby MAT, a lossless PCM container that the receiver unpacks. So “Atmos” alone does not tell you how the audio was delivered. MAT does not restore anything either: it packages what the source holds so the receiver can render it, and any compromise earlier in the chain stays. A higher bitrate does not by itself prove an audible advantage.

DTS decodes DTS:X up to 7.1.4 from disc, and for streaming it developed a codec described as high-efficiency and low-bandwidth. At launch DTS said DTS:X can be lossless, with a high-quality lossy mode for when bitrate matters, so DTS:X on a stream should not be read as lossless.

IMAX Enhanced is two things. Disney+ describes an expanded 1.90:1 picture on all supported devices, and IMAX Enhanced sound with DTS:X on certain Android TV devices from Sony, Hisense, Sharp and Xiaomi. A title can show the wider picture without DTS:X sound; a DTS:X badge appears in its Details tab when the sound is available.

Auro’s home content comes on Blu-ray or by streaming with Auro-Codec. Auro-Codec puts the Auro layout, a surround version and a stereo version into one PCM carrier, and a device with no Auro decoder plays the surround version as ordinary PCM. Auro’s content list shows what exists; this guide counts no titles.

Availability also varies by edition, language, country, plan, app and device. Netflix needs a plan that supports Ultra HD, a device that can play Atmos and an Atmos-capable audio system, and says not every episode or language has it. For discs, read the exact edition’s listed audio, as reissues can differ. Our Atmos scenes guide names the edition checked for each film.

HDMI, ARC, eARC and passthrough

In source to TV to receiver, the sound travels back from the TV over ARC or eARC. In source to receiver to TV, the receiver gets the signal directly, which is simpler, and Apple recommends plugging an Apple TV 4K straight into the soundbar or receiver.

Three questions are separate: what the connection can carry, what each device can decode or pass through, and what the app or player actually outputs. A yes to one is not a yes to the others.

TCL’s support page describes ARC as about 1 Mbps, enough for stereo or 5.1 Dolby Digital or DTS. Atmos in Dolby Digital Plus can travel over ARC on some equipment, depending on TV and receiver, and Apple says its high-bandwidth Atmos does not work over ARC. HDMI lists DTS-HD Master Audio, DTS:X, Dolby TrueHD and Dolby Atmos among the formats eARC supports, but bandwidth does not guarantee every codec: TV and receiver must both support eARC and the formats, and the TV must pass them on, not decode them. An eARC device connected to an ARC device falls back to ARC’s limits.

Optical cables carry two-channel PCM or compressed 5.1 at most, so they cannot carry these native immersive home streams; the signal-path designer shows what each connection can carry.

A receiver showing PCM does not prove Atmos is absent. If a source decodes Atmos itself and sends it as MAT, the receiver can still render it. Ordinary multichannel PCM from a device that decoded the track has usually lost the height information. Dolby tells owners to set a player to bitstream output and, on a Blu-ray player, to turn secondary audio off. Why does my receiver say PCM? explains how to tell the cases apart.

Which should you prioritise?

The right answer depends on how you watch, and none of these needs an upgrade for its own sake.

Streaming-first viewers

Start with Atmos, since services such as Netflix list it, and check the path from the streaming device to the receiver before anything else. DTS:X on streaming is narrower, limited by app and device.

Blu-ray collectors

Check that the receiver lists TrueHD with Atmos and DTS-HD Master Audio with DTS:X, set the player to bitstream with secondary audio off, and read each disc’s listed audio. Atmos discs use TrueHD, and DTS says DTS:X is on Blu-rays.

Existing 5.1 owners

Dolby says Atmos uses the same basic layouts as 5.1 and 7.1, so many owners can build on what they have. Adding two height speakers makes 5.1.2; count the receiver’s processed and amplifier channels first, and see soundbar or separate speakers if you are still choosing.

People installing four height speakers

Work out positions against Dolby’s published angles first. That layout is a reasonable base for DTS:X as well. Auro-3D’s height layer sits in different places, so serving it fully may mean compromises.

Soundbar buyers

Read the formats the bar lists. Dolby describes Atmos soundbars with upward-firing drivers or virtualised height, DTS Virtual:X is a virtual-height technology, and Auro-3D soundbars use Auro-Scene.

Enthusiasts interested in Auro-Matic

Auro-Matic is part of the Auro-3D engine, so it needs a device that includes it and a height layer to be worth using. On the CINEMA 50 its preset and strength settings sit under Surround Parameter, and they cannot be set when the input is native Auro-3D with a height channel. It is a matter of taste, not a restoration of a missing mix.

A short troubleshooting checklist

Check the selected audio track. Discs and apps do not always choose the immersive one.

Check the exact edition or title. Another edition, language or country can carry different audio.

Check plan, device and app. Streaming immersive audio depends on all three.

Check player and TV settings. Bitstream output, secondary audio off on a Blu-ray player, and the TV’s passthrough setting.

Read the receiver’s input signal separately from its listening mode. The input shows what arrives; the mode is what the receiver does with it. The CINEMA 50 manual says to select the Dolby Atmos mode again if another mode was used before.

Check speaker assignments. Confirm the receiver knows about the height speakers and that the amplifier channels are assigned to them. The Atmos troubleshooter goes through it by symptom.

Frequently asked questions

Is DTS:X better than Dolby Atmos?

The makers’ documents do not support ranking them. Both are object-based, and what you hear depends on the mix, mastering, placement, calibration and room.

Can the same speakers play all three formats?

Often to a degree: it depends on the receiver’s decoders and speaker assignments, and Auro-3D’s layouts differ from Atmos layouts.

Is Auro-3D the same as Auro-Matic?

No. Auro-3D is the format; Auro-Matic is the upmixer that spreads other content across an Auro-3D layout.

Do I need ceiling speakers?

No. Dolby lists upward-firing speakers and Atmos soundbars as alternatives. Auro-3D’s height layer is a ring of speakers above the ear-level ones.

Does eARC guarantee DTS:X?

No. eARC supports DTS:X, but the source, the TV and the receiver must all support and pass it.

Why does my receiver show an upmixer instead of the native format?

The track may not be native, the signal may arrive as plain PCM, or the listening mode may be set to an upmixer. Check the input display, and see Why does my receiver say PCM?.
